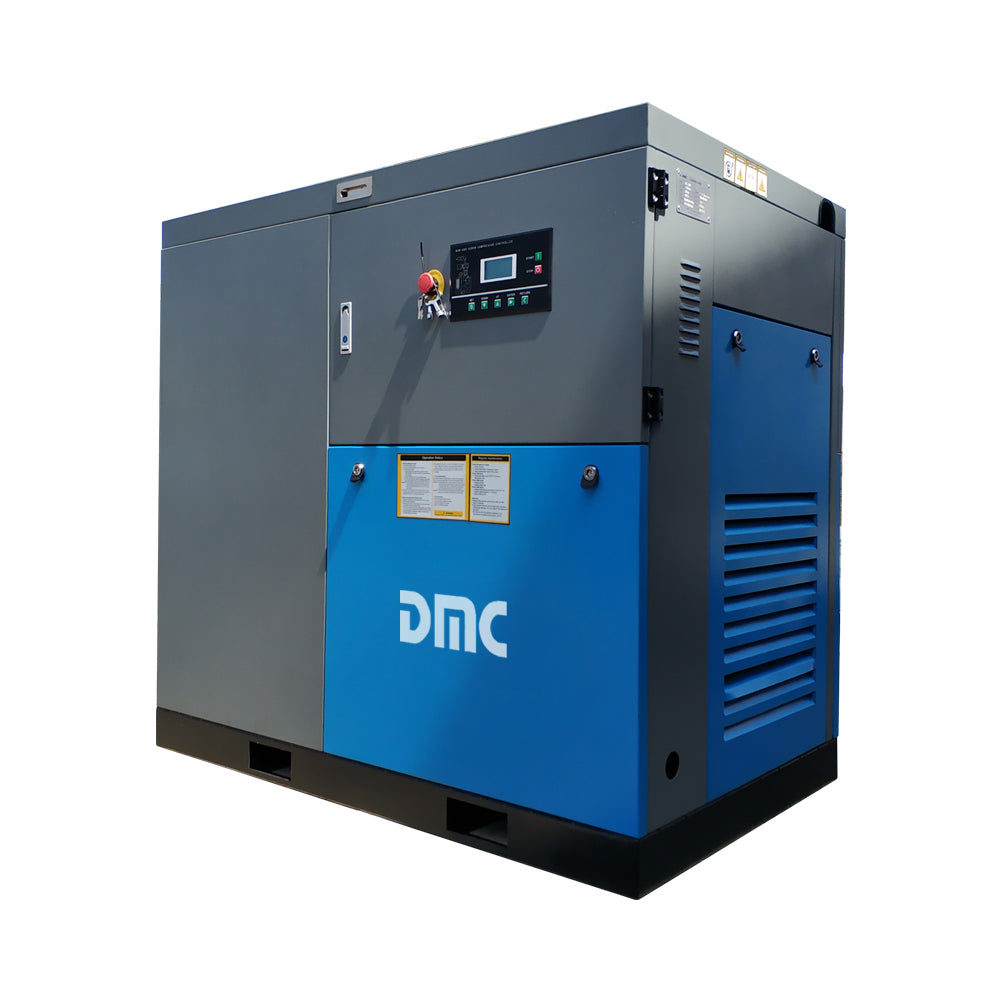

120CFM 125PSI ROTARY SCREW AIR COMPRESSOR 30HP 230/460V
120CFM 125PSI ROTARY SCREW AIR COMPRESSOR 30HP 230/460V
The SC product line includes 30-200 hp screw air compressor models that include a long-life V-belt drive, high efficiency intake and TEFC motor. The standard quiet enclosure is designed to reduce vibration and noise levels. The compact size is easy to install in anywhere. An integrated dryer option is also available
Lubricated Rotary Screw Air Compressors
A rotary screw air compressor is a positive displacement compression system that includes a pair of matching helical screws. An oil-flooded rotary screw compressor includes a lubricant that fills the gap between the rotors, which creates an air-tight hydraulic seal and transfers mechanical energy between the two rotors. The air moves through the threads as the screws rotate, and the meshing screws force the air through the compressor.
Model | SC22A | SC30A | SC37A | SC45A | SC55A | SC75A |
Capacity m3/min | 3.5 | 5.0 | 6.2 | 7.5 | 10.0 | 13.0 |
Pressure bar | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 | 7-16 |
Power kw | 22 | 30 | 37 | 45 | 55 | 75 |
Voltage | 50/60 Hz 3ph | 50/60 Hz 3ph | 50/60 Hz 3ph | 50/60 Hz 3ph | 50/60 Hz 3ph | 50/60 Hz 3ph |
